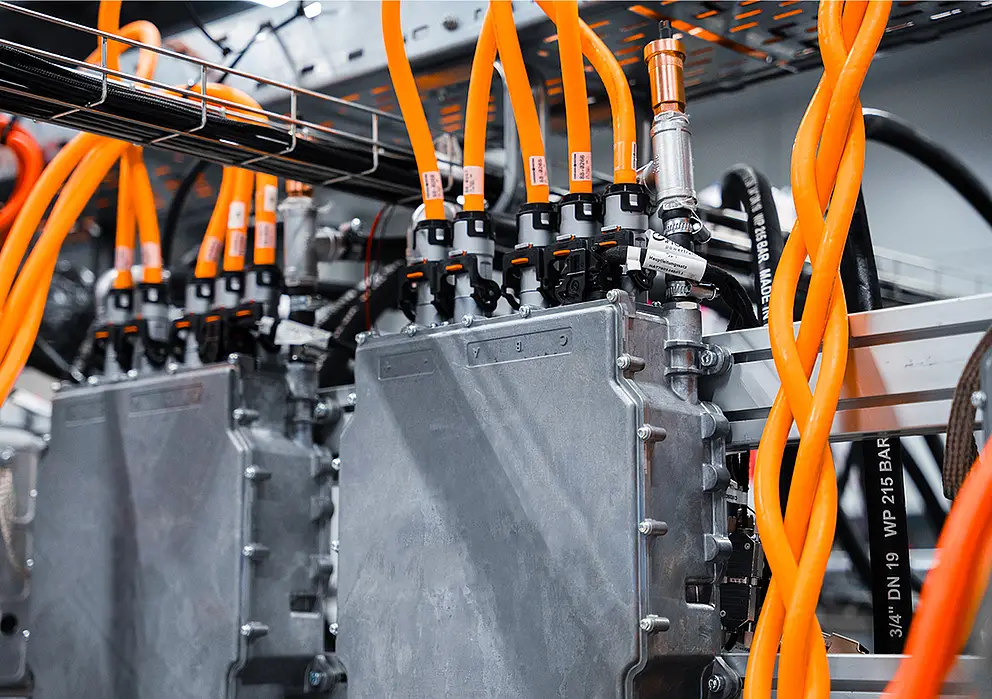

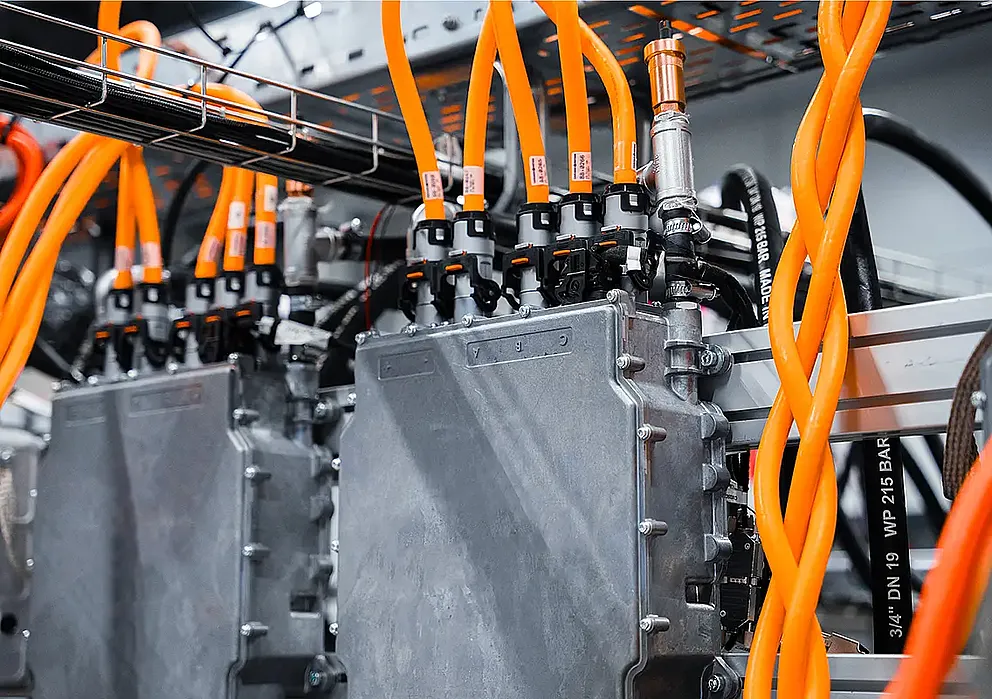

From inverter to OBC

Power electronics safely tested

In electrified drives, power electronics determine efficiency, safety and reliability. With high-precision measurement technology, flexible test environments and standard-compliant procedures, we safeguard your components - resilient, reproducible and ready for series production.

Reliability under high-voltage conditions

Electrical intelligence needs reliable data

Whether control, conversion or charging infrastructure - power electronics are the nervous system of electrified drives. PTS-Prüftechnik tests your systems under voltage, temperature and time pressure: with automated test benches, real-time analysis and standard-compliant documentation. So that your components are ready for use - and react precisely even under load.

Electronics that show performance

Our test benches simulate voltage fluctuations, EMC faults and load change cycles - reproducibly, automatically and documented.

Scope of services:

High-voltage, insulation and breakdown tests
EMC and HF immunity tests
Thermal characterization incl. heat sink evaluation
Endurance & load cycle tests
Validation of protective functions (overcurrent, overvoltage, etc.)
Software communication tests (CAN, LIN, Ethernet)

Secure your certification with reliable measurement data.

From components to high-voltage tests

Variety of test specimens & infrastructure

Typical test specimens:

Our test benches cover the entire spectrum of current power electronics:

Inverters
DC/DC converters
On-board chargers (OBC)
Power switches & relays
Thermal management modules

Technical infrastructure:

High-performance test and laboratory equipment is available to ensure reliable results:

HV test benches up to 1,500 V DC / 1,000 A
Climatic chambers (-70 °C to +240 °C)
Automated testing and evaluation software
In-house manufactured test adapters
Energy management with energy recovery & peak shaving

Advantages

Holistic system testing

Real test conditions

Customized tests & analyses

Everything from a single source

Drive units

Realistic testing of complete systems >

Assemblies & components

Secure individual components mechanically, electrically and hydraulically >

Battery modules

Testing modules under real load profiles and climatic conditions >

Thermal management

Optimize cooling circuits & heat dissipation under real conditions >

Power electronics as part of powertrain testing

Complete drive systems for efficiency, safety and dynamics

Power electronics is just one component of our powertrain testing portfolio. We test complete drive systems - from electronics and mechanical components to the entire powertrain. We ensure performance, efficiency and reliability under realistic conditions - from development to series release.

Explore the full Powertrain Testing portfolio
